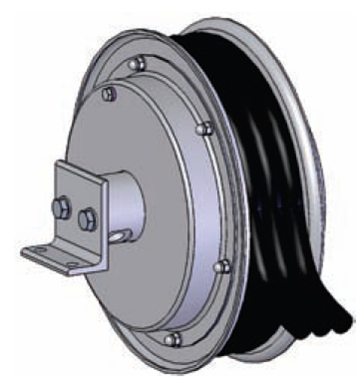

点击数:2075AT3系列紧凑式单管弹簧卷筒
AT2系列紧凑式单管弹簧卷筒
● 液压软管及旋转接头通径:1/4” - 3/8” - 1/2”。 ● 防腐聚氨酯喷漆。 ● 防护等级:IP55(标准CEI EN60529)。 ● 根据要求,旋转方向可逆。 ● 最大流量60L/min ● 压力从100bar到400bar。
|
可选软管:
软管内径Φ | 型号 | 最大压力 | 软管外径Φ | 最小弯曲半径 | 重量 | |
Inch | mm | |||||
1/4" | 6.3 | R7 | 200 | 12.2 | 30 | 0.19 |
R8 | 345 | 12.2 | 30 | 0.2 | ||
B1 | 275 | 11.7 | 40 | 0.33 | ||
B2 | 375 | 13.5 | 40 | 0.53 | ||
3/8" | 10 | R7 | 160 | 16 | 55 | 0.29 |
R8 | 275 | 16 | 55 | 0.29 | ||
B1 | 212 | 16 | 65 | 0.53 | ||
B2 | 350 | 17 | 90 | 0.8 | ||
1/2" | 12.5 | R8 | 241 | 20 | 75 | 0.42 |
B1 | 175 | 18.3 | 85 | 0.6 | ||
B2 | 310 | 20 | 130 | 1.04 |

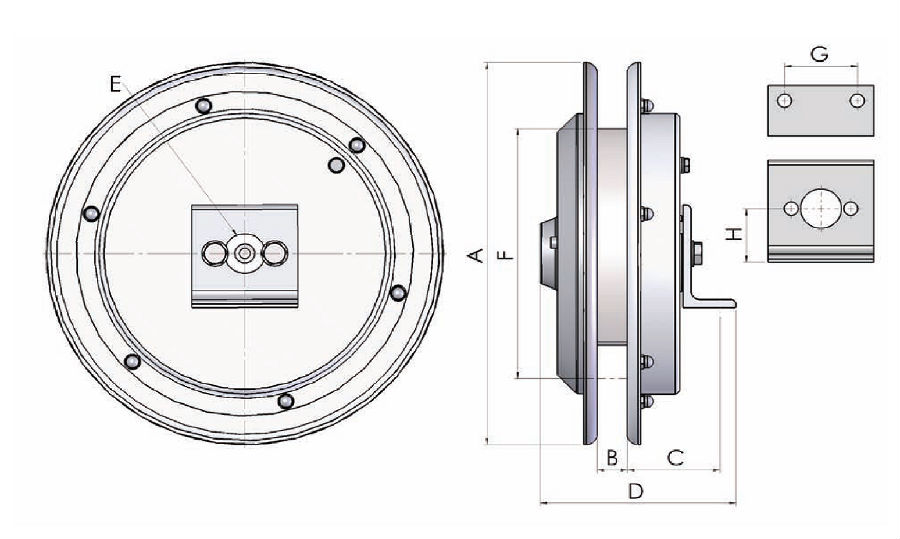

COD. | Boom ex.(m) | A | B | C | D | E | F | G | H | Φ |
AT3-D30-138-XX | 3 | 300 | 60 | 110 | 238 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D30-112-XX | 1.5 | 300 | 72 | 110 | 238 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D32-138-XX | 3.5 | 320 | 60 | 110 | 238 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D32-112-XX | 2.5 | 320 | 72 | 110 | 238 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D35-138-XX | 4.5 | 350 | 60 | 110 | 238 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D35-112-XX | 3.5 | 350 | 72 | 110 | 238 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D37-138-XX | 5.5 | 370 | 60 | 110 | 238 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D37-112-XX | 3.5 | 370 | 72 | 110 | 238 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D40-138-XX | 6.5 | 400 | 60 | 110 | 238 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D40-112-XX | 4.5 | 400 | 72 | 110 | 238 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D42-138-XX | 7.5 | 420 | 60 | 110 | 238 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D42-112-XX | 5.5 | 420 | 72 | 110 | 238 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D47-138-XX | 10 | 470 | 60 | 80 | 248 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D47-112-XX | 6.5 | 470 | 72 | 80 | 248 | 1/2" | 196 | 55 | 42 | 10.5 |
AT3-D52-138-XX | 12.5 | 520 | 60 | 80 | 248 | 3/8" | 196 | 55 | 42 | 10.5 |
AT3-D52-112-XX | 8.5 | 520 | 72 | 80 | 248 |
