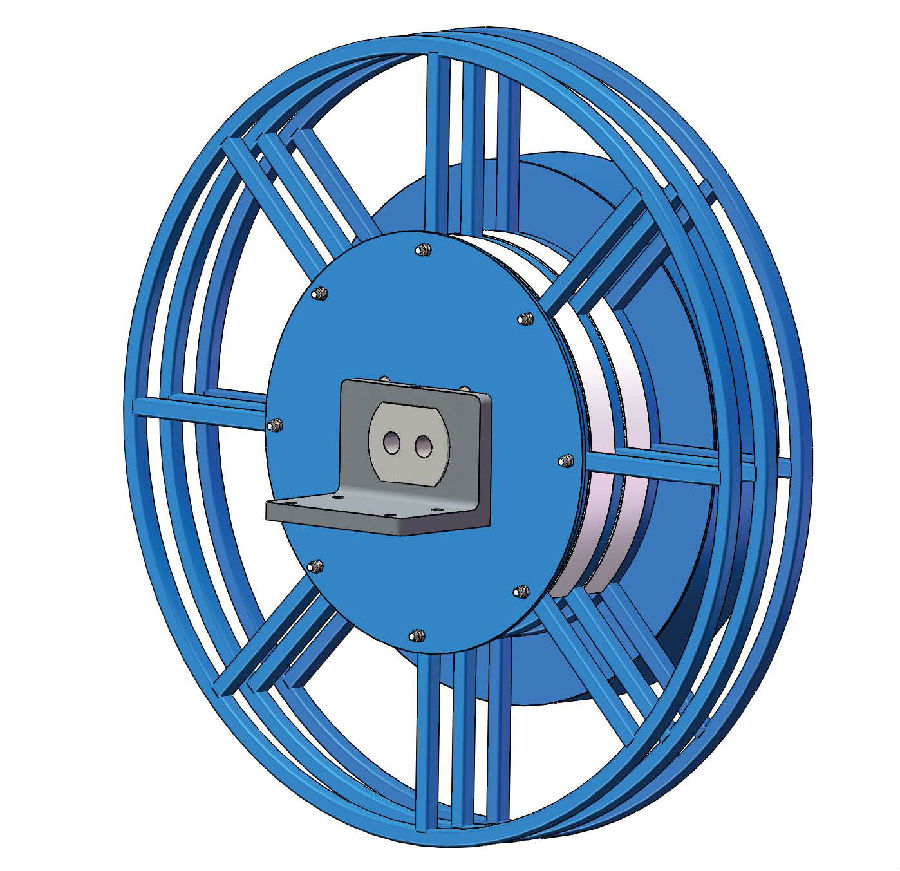

HR2.25 型双管软管卷筒
HR2.25双管软管卷筒 最大压力 | Max. work pressure ：420bar |  |
订货实例 | Or der Example
| HR2 | R | 900 | 25 | 12 | B3 |
| 双管型卷筒 | R：右旋 L：左旋 | 盘子直径 | 设计号 | 软管内径 | 软管类型 |
可选软管 | Available hose
B1：热塑性钢丝编织加强层软管 | Thermoplastic with 1 steel braid reinforcement
B2、B3：合成橡胶2层钢丝编织加强层软管 | Rubber with 2 steel braid reinforcement
| 软管内径Φ Hose Inside diameter | 型号 Type | 最大压力 Max.pressure (bar) | 软管外径Φ Outside Hose (mm) | 最小弯曲半径 Min.bending (mm) | 重量 Weight kg/m | |
| Inch | mm | |||||
| 3/8" | 10 | B1 | 212 | 16 | 65 | 0.53 |
| B2 | 250 | 17 | 90 | 0.8 | ||
| B3 | 420 | 16.6 | 90 | 0.8 | ||
| 1/2" | 12.5 | B1 | 175 | 18.3 | 85 | 0.6 |
| B2 | 310 | 20 | 130 | 1.04 | ||
| B3 | 350 | 20.2 | 150 | 1.04 | ||
| 5/8" | 16 | B3 | 250 | 25 | 160 | 1.32 |
| 3/4" | 19 | B3 | 225 | 27.7 | 195 | 1.72 |
| 型号 Type | A | B | D | E | F | 软管内径 Inside Hose | 管型|Hose type-B2-B3 | |
| mm | 总长(m) total length | 工作行程(m) Usable Length | ||||||
| HR2R(L).800.25.10.XX | 440 | 180 | 810 | 155 | 605 | 3/8" | 20 | 19 |
| HR2R(L).800.25.12.XX | 1/2" | 18 | 17 | |||||
| HR2R(L).800.25.16.XX | 5/8" | 16 | 15 | |||||
| HR2R(L).800.25.19.XX | 3/4" | 15 | 14 | |||||
| HR2R(L).900.25.10.XX | 440 | 180 | 910 | 190 | 605 | 3/8" | 26 | 25 |
| HR2R(L).900.25.12.XX | 1/2" | 24 | 23 | |||||
| HR2R(L).900.25.16.XX | 5/8" | 22 | 21 | |||||
| HR2R(L).900.25.19.XX | 3/4" | 20 | 19 | |||||
| HR2R(L).1000.25.10.XX | 490 | 180 | 1000 | 240 | 605 | 3/8" | 30 | 29 |
| HR2R(L).1000.25.12.XX | 1/2" | 28 | 27 | |||||
| HR2R(L).1000.25.16.XX | 5/8" | 24 | 23 | |||||
| HR2R(L).1000.25.19.XX | 3/4" | 20 | 19 | |||||
| HR2R(L).1100.25.10.XX | 490 | 180 | 1100 | 240 | 605 | 3/8" | 35 | 33 |
| HR2R(L).1100.25.12.XX | 1/2" | 35 | 33 | |||||
| HR2R(L).1100.25.16.XX | 5/8" | 30 | 28 | |||||
| HR2R(L).1100.25.19.XX | 3/4" | 25 | 23 | |||||
| HR2R(L).1200.25.10.XX | 540 | 180 | 1200 | 240 | 605 | 3/8" | 40 | 38 |
| HR2R(L).1200.25.12.XX | 1/2" | 44 | 40 | |||||
| HR2R(L).1200.25.16.XX | 5/8" | 37 | 35 | |||||
| HR2R(L).1200.25.19.XX | 3/4" | 30 | 28 | |||||
| HR2R(L).1300.25.10.XX | 540 | 180 | 1300 | 240 | 605 | 1/2" | 47 | 45 |
| HR2R(L).1300.25.12.XX | 5/8" | 45 | 43 | |||||
| HR2R(L).1300.25.16.XX | 3/4" | 35 | 33 | |||||
| HR2R(L).1400.25.19.XX | 540 | 180 | 1400 | 300 | 605 | 5/8" | 50 | 48 |
| HR2R(L).1400.25.20.XX | 3/4" | 40 | 38 | |||||
