点击数:910HR2标准型双管软管卷筒

R2标准型双管软管卷筒



双管标准型|Double hose reels standard


最大压力 | Max. work pressure :300bar
最大流量 | Max. flow rate : 40L/min
最大速度 | Max. hose speed : 30M/min



订货实例 | Or der Example


HR2R37006R7(/F)
双管标准型卷筒

R:右旋

L:左旋

盘子直径

从270mm-1000mm

软管内径

软管类型

F:法兰安装





可选软管 | Available hose

R7、R8 :热塑性纤维编织加强层软管 | Thermoplastic with textile braid reinforcement

B1:热塑性钢丝编织加强层软管 | Thermoplastic with 1 steel braid reinforcement

B2:合成橡胶2层钢丝编织加强层软管 | Rubber with 2 steel braid reinforcement


软管内径Φ
Hose Inside diameter
型号
Type
最大压力
Max.pressure
(bar)
软管外径Φ
Outside Hose
(mm)
最小弯曲半径
Min.bending
(mm)
重量
Weight
kg/m
Inchmm
1/4"6.3R720012.2300.19
R834512.2300.2
B127511.7400.33
B237513.5400.53
5/16"8R717214.4450.25
R830014.4450.25
B121213.4550.37
B231015.1550.64
3/8"10R716016550.29
R827516550.29
B121216650.53
B235017900.8
1/2"12.5R824120750.42
B117518.3850.6
B2310201301.04

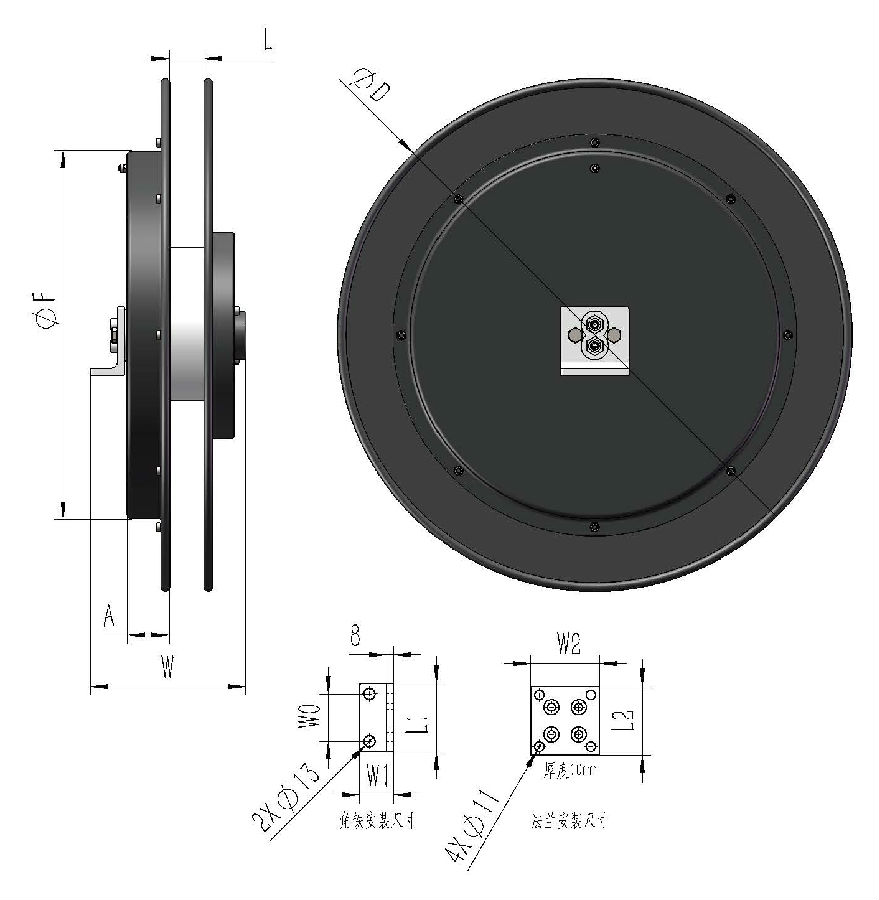

型号
Type
ABDEF软管内径
   Inside Hose
管型|Hose type-R7-R8-B1-B2
mm总长(m)
total length
工作行程(m)
Usable Length
HR2R(L).296.06.XX16175295352911/4"32.7
HR2R(L).296.08.XX5/16"2.32
HR2R(L).296.10.XX3/8"2.32
HR2R(L).296.12.XX1/2"1.51.2
HR2R(L).321.06.XX16182325372721/4"43.7
HR2R(L).321.08.XX5/16"3.22.9
HR2R(L).321.10.XX3/8"3.33
HR2R(L).321.12.XX1/2"2.52.2
HR2R(L).341.06.XX16182340372721/4"54.7
HR2R(L).341.08.XX5/16"4.23.9
HR2R(L).341.10.XX3/8"43.7
HR2R(L).341.12.XX1/2"2.52.2
HR2R(L).370.06.XX16182370372721/4"65.7
HR2R(L).370.08.XX5/16"5.35
HR2R(L).370.10.XX3/8"4.54.2
HR2R(L).370.12.XX1/2"3.53.2
HR2R(L).400.06.XX16182400473221/4"7.37
HR2R(L).400.08.XX5/16"6.56.2
HR2R(L).400.10.XX3/8"5.65.3
HR2R(L).400.12.XX1/2"4.54.2
HR2R(L).420.06.XX16182420473221/4"8.68.1
HR2R(L).420.08.XX5/16"87.5
HR2R(L).420.10.XX3/8"6.75.3
HR2R(L).420.12.XX1/2"4.74.2
HR2R(L).470.06.XX16182478473221/4"11.511
HR2R(L).470.08.XX5/16"109.5
HR2R(L).470.10.XX3/8"9.59
HR2R(L).470.12.XX1/2"7.57
HR2R(L).520.06.XX17192520473221/4"14.514
HR2R(L).520.08.XX5/16"12.512
HR2R(L).520.10.XX4223/8"11.210.7
HR2R(L).520.12.XX1/2"98.5
HR2R(L).570.06.XX17192570474221/4"17.517
HR2R(L).570.08.XX5/16"15.515
HR2R(L).570.10.XX3/8"13.513
HR2R(L).570.12.XX1/2"10.710.2
HR2R(L).600.06.XX17192620474221/4"2120.5
HR2R(L).600.08.XX5/16"1716.5
HR2R(L).600.10.XX3/8"1615.5
HR2R(L).600.12.XX1/2"12.512
HR2R(L).650.06.XX181102650574221/4"22.522
HR2R(L).650.08.XX5/16"19.519
HR2R(L).650.10.XX3/8"17.517
HR2R(L).650.12.XX1/2"14.514
HR2R(L).700.06.XX181102720575321/4"2726.5
HR2R(L).700.08.XX5/16"2221.5
HR2R(L).700.10.XX3/8"2019.5
HR2R(L).700.12.XX1/2"1615.5
HR2R(L).800.08.XX191112820675325/16"3029
HR2R(L).800.10.XX3/8"2625
HR2R(L).800.12.XX1/2"2120
HR2R(L).900.08.XX201122920675325/16"3837
HR2R(L).900.10.XX3/8"3433
HR2R(L).900.12.XX1/2"2827
HR2R(L).1000.10.XX2261221000676873/8"3635
HR2R(L).1000.12.XX1/2"3534
