点击数：2128HR1.M系列单路软卷卷筒

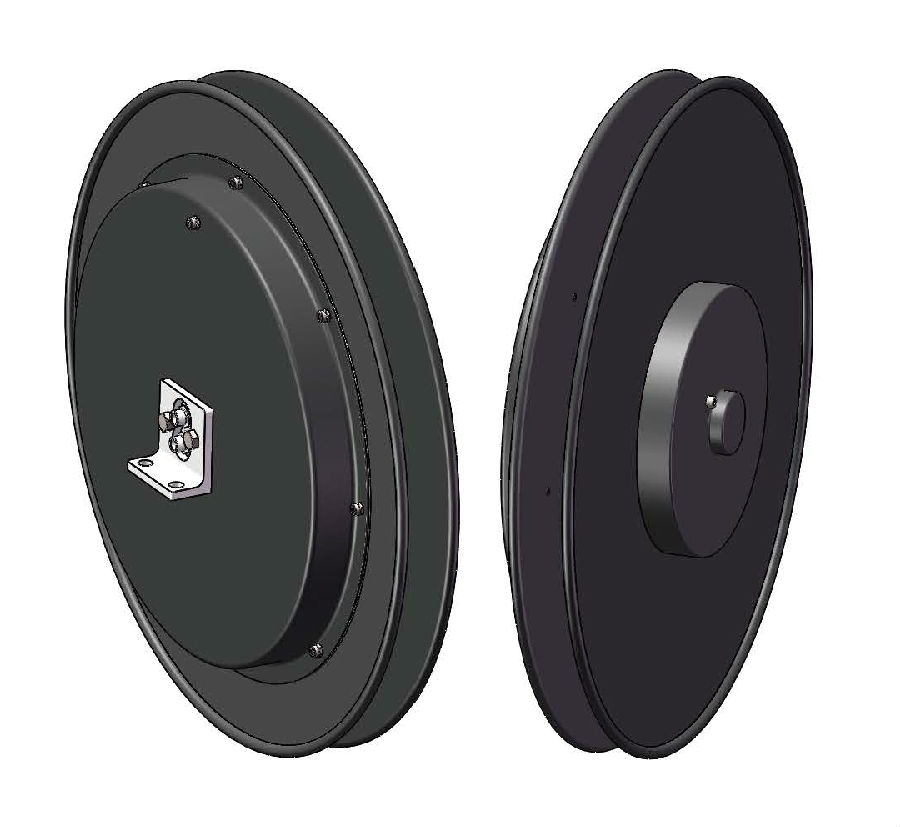

HR1.M系列单管软管卷筒
单管型｜Single hose reels
最大压力 | Max. work pressure ：350bar
最大流量 | Max. flow rate ： 135L/min
最大速度 | Max. hose speed : 30M/min
软管的内径及通流能力：
软管内径（mm） Inside hose | 流量 Flow |
| 8 | 30L/min |
| 10 | 30L/min |
| 12 | 40L/min |
| 16 | 60L/min |
| 19 | 80L/min |
| 25 | 135L/min |
安装方式 | Mounting
 |  |  |
横向安装 Horizontal | 垂直向上 Vertical up | 垂直向下 Vertical down （可要求|On request） |
可选软管 | Available hose
1SN：合成橡胶1层钢丝编织加强层软管 | Synthetic rubber with 1 steel braid reinforcement
2SN：合成橡胶2层钢丝编织加强层软管 | Synthetic rubber with 2 steel braid reinforcement
R16：合成橡胶2层钢丝缠绕加强层软管 | Synthetic rubber with 2 steel braid reinforcement
SB 1：热塑性塑料1层钢丝编织加强层软管 | Thermoplastic with 1 steel braid reinforcement
软管内径Φ Hose Inside diameter | 型号 Type | 最大压力 Max.pressure (bar) | 软管外径Φ Outside Hose (mm) | 最小弯曲半径 Min.bending (mm) | 重量 Weight kg/m | |
Inch | mm | |||||
1/4" | 6.35 | 1SN | 225 | 14.1 | 100 | 0.21 |
2SN | 400 | 15.7 | 100 | 0.37 | ||
SB1 | 275 | 12.2 | 30 | 0.17 | ||
R16 | 400 | 13.5 | 70 | 0.29 | ||
5/16" | 7.54 | 1SN | 215 | 15.7 | 115 | 0.33 |
2SN | 350 | 17.3 | 115 | 0.37 | ||
SB1 | 212 | 13.4 | 55 | 0.19 | ||
R16 | 350 | 15 | 80 | 0.35 | ||
3/8" | 9.53 | 1SN | 180 | 18.1 | 130 | 0.34 |
2SN | 330 | 19.7 | 130 | 0.57 | ||
SB1 | 212 | 16 | 65 | 0.26 | ||
R16 | 330 | 17.9 | 90 | 0.47 | ||
1/2" | 12.7 | 1SN | 160 | 21.5 | 180 | 0.45 |
2SN | 275 | 23.1 | 180 | 0.65 | ||
SB1 | 175 | 18.3 | 85 | 0.3 | ||
R16 | 275 | 20.6 | 120 | 0.56 | ||
订货实例 | Order Example
| HR1 | R | 600 | M | 12 | 2SN |
| 1根软管卷筒 1 Ports hose reel | R：右旋 | Right L：左旋 | Left | 盘子直径 Flange Diameter | 设计号 Design | 软管内径 Inside Hose | 软管类型 Hose Type |
| HR：软管卷筒 | Hose reel CR：电缆卷筒 | Cable reel | |||||

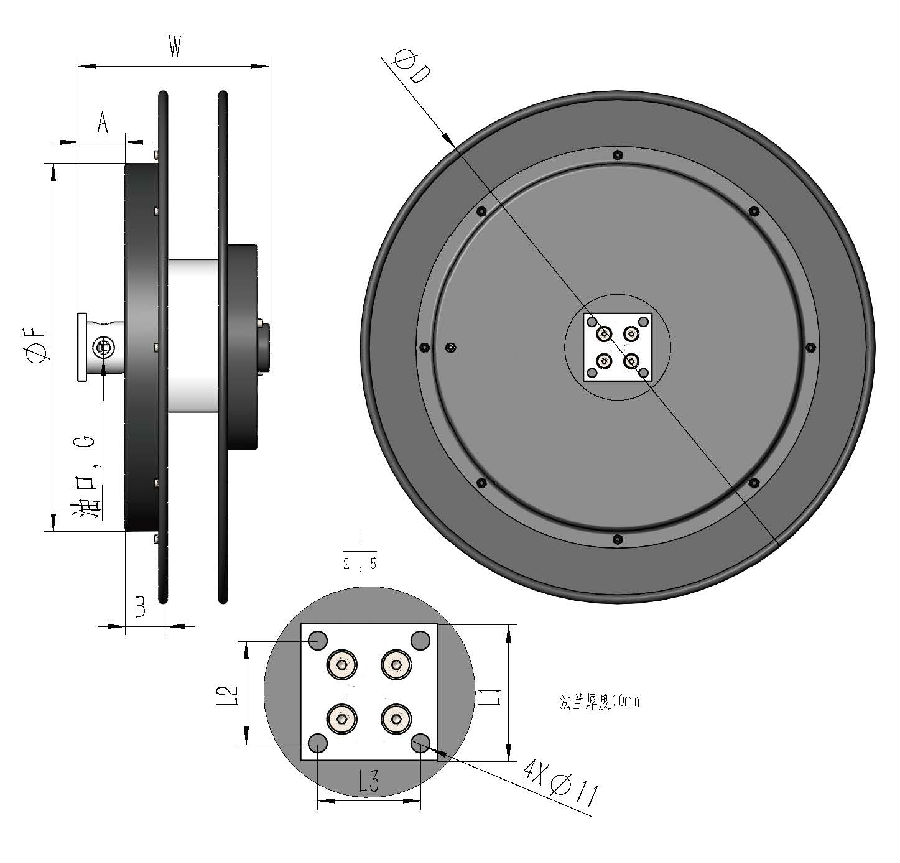

参数表：
型号 Type | A | B | D | E | F | 软管内径 Inside hose | 管型-with hose Total Length(m)(Usable=Utile-0.5m) | |||
mm | XX=1SN | XX=2SN | XX=SB1 | XX=R16 | ||||||
HR1R(L).295.M.06.XX | 295 | 1/4" | 4.7 | 3.5 | 5.5 | 4.7 | ||||
HR1R(L).320.M.06.XX | 182 | 92 | 325 | 47 | 292 | 1/4" | 5 | 4.7 | 6 | 4.7 |
HR1R(L).320.M.08.XX | 5/16" | 4.5 | 4 | 5 | 4.5 | |||||
HR1R(L).320.M.10.XX | 3/8" | 4.5 | 4 | 4.5 | 4.5 | |||||
HR1R(L).340.M.06.XX | 340 | 1/4" | 5.5 | 5 | 6 | 5.5 | ||||
HR1R(L).340.M.08.XX | 5/16" | 4.7 | 4.7 | 5.5 | 4.7 | |||||
HR1R(L).340.M.10.XX | 3/8" | 4.7 | 4.5 | 5 | 4.7 | |||||
HR1R(L).370.M.06.XX | 370 | 1/4" | 7 | 6 | 10 | 7 | ||||
HR1R(L).370.M.08.XX | 5/16" | 7 | 5.5 | 9 | 7 | |||||
HR1R(L).370.M.10.XX | 3/8" | 6 | 5 | 9 | 6 | |||||
HR1R(L).470.M.06.XX | 193 | 92 | 478 | 47 | 422 | 1/4" | 15.5 | 14.5 | 16 | 15.5 |
HR1R(L).470.M.08.XX | 5/16" | 14.5 | 13.5 | 15.5 | 14.5 | |||||
HR1R(L).470.M.10.XX | 3/8" | 13.5 | 12.5 | 15 | 13.5 | |||||
HR1R(L).520.M.06.XX | 213 | 92 | 520 | 47 | 422 | 1/4" | 17.5 | 16 | 22.5 | 17.5 |
HR1R(L).520.M.08.XX | 5/16" | 16.5 | 15 | 21.5 | 16.5 | |||||
HR1R(L).520.M.10.XX | 3/8" | 15.5 | 14 | 21.5 | 15.5 | |||||
HR1R(L).520.M.12.XX | 1/2” | 13.5 | 11.5 | 16 | 13.5 | |||||
HR1R(L).570.M.08.XX | 570 | 5/16" | 17.5 | 16.5 | 18.5 | 17.5 | ||||
HR1R(L).570.M.10.XX | 3/8" | 16.5 | 16.5 | 17.5 | 16.5 | |||||
HR1R(L).570.M.12.XX | 1/2” | 15.5 | 14.5 | 16.5 | ||||||
HR1R(L).600.M.10.XX | 225 | 112 | 620 | 57 | 532 | 3/8" | 20.5 | 26 | 20.5 | |
HR1R(L).600.M.12.XX | 1/2” | 20.5 | 26 | 20.5 | ||||||
HR1R(L).700.M.12.XX | 720 | 1/2” | 26.5 | 23.5 | 30.5 | 26.5 | ||||
